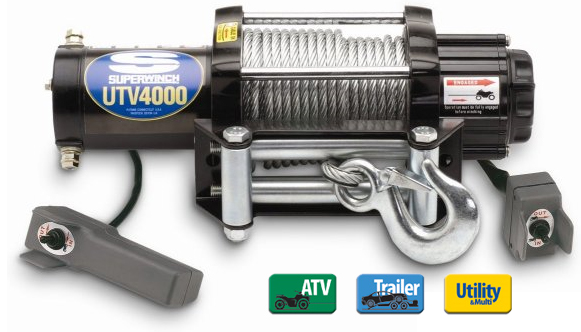

Superwinch 1140200 UTV 4000 Series Winch with Handlebar, Toggle Switch and Mount Plate

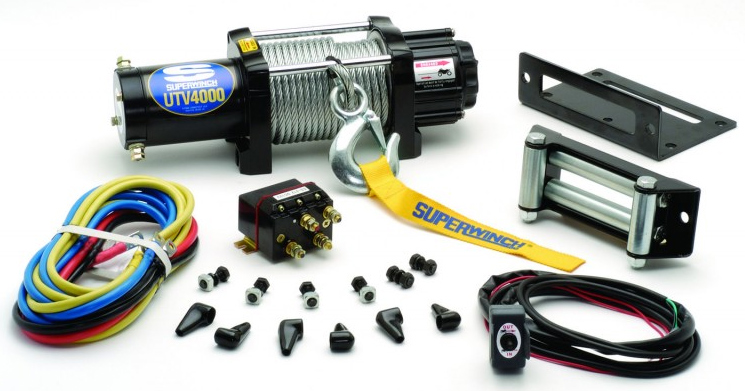

This winch provides multiple switching and multiple mounting options. It also includes cam action freespooling clutch and high efficiency low amp draw sealed permanent magnet motor. Superwinch UTV4000 Series Winch with Handlebar, Toggle Switch and Mount Plate powers load in and out ensuring high efficiency winching. Circuit breaker protector, weather sealed solenoid contactor, 4-way roller fairlead, heavy duty latched hook with thimble, handle bar mount switch and mounting hardware makes it a completely dependable winch. The winch can withstand a working load limit up to 4000 lbs. It features mechanical load holding and dynamic brake which accounts for great strength as well as security. In addition, this winch is backed by a limited life time warranty.

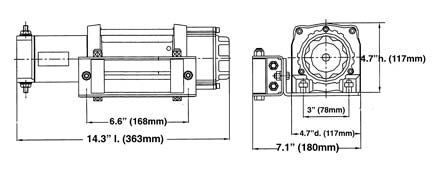

View larger. Mechanical Load Holding and Dynamic Braking Safety should always be an important consideration with any piece of machinery. warrants to the original buyer that the mechanical components of all genuine Superwinch Winch Models shall be free from defects in materials and workmanship from the date of purchase of new products for the lifetime of the winch and that the electrical components shall be free from defects in materials and workmanship for one year from the provable date of purchase. x 4.7" d. x 4.7" h Drum diameter 2.0" (51mm) Drum length 4.7" (119mm) Weight 19 lb (8.61kg) winch & rope Switching method Handlebar style mounted toggle Remote switch 10' hand held with socket & hardware Switching mechanism Heavy Duty, Sealed Solenoid Roller fairlead Heavy Duty, 4-way Color-coded wiring Yes Multi-mount plate Heavy duty with hardware Performance 12VDC (1st layer on drum): Line Pull Motor Line Speed LB  (kg) AMPS FPM (m/m) 0 0 18 14.2 (4.3) 500 (227) 42 12.5 (3.8) 1000 (454) 70 11.0 (3.4) 1500 (680) 97 9.5 (2.9) 2000 (907) 125 8.0 (2.4) 2500 (1134) 155 7.0 (2.1) 3000 (1361) 185 5.5 (1.7) 3500 (1588) 220 4.5 (1.4) 4000 (1814) 260 3.0 (0.9) About Superwinch, Inc. Powerful and versatile, yet easy to use, Superwinch's UTV4000 is the winching tool you need to get serious work done regardless of your vehicle, or task. With this in mind the Superwinch UTV4000 features the optional freedom of a wireless remote (sold separately). A perfect multi-use winch. With their sleek, compact construction, Superwinch products are designed for fast, easy installation - whether portable or permanent. Standard Features:

• Power in and power out.
• Mechanical load holding and dynamic braking.
• Full metal, 3-stage planetary gear-train.
• Cam action freespooling clutch.
• High efficiency, low amp draw, sealed permanent magnet motor.
• Circuit breaker protected.
• Weather sealed solenoid contactor.
• 4-way roller fairlead.
• Heavy duty latched hook with thimble.
• Multiple switching and mounting options.

Specifications: Rated line pull 4000 lb (1814 kg) Motor 1.5 hp (12V DC) Gearing 3-stage planetary Gear Ratio 184:1 Braking Mechanical and dynamic Freespool Clutch Cam action Wire rope 7/32” (5.5mm) x 50' (15.2m) Dimensions 14.3"l. Superwinch products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. View larger. Compact but powerful. Available in capacities ranging from 1,000 to 30,000 pounds, Superwinch has the right winch for your application. Wireless Remote Switching Options Although the Superwinch UTV4000 features a standard handlebar mounted on/off toggle switch, and an additional handheld switch, real-world conditions and terrain in the field can often make flexibility in how you operate your winch an important consideration. High Efficiency, Low Amp Draw Motor Providing efficient pulling power whenever and wherever you need it, the Superwinch UTV4000 winch features a high efficiency, low amp draw sealed permanent magnetic motor. Any product that Superwinch determines to be defective will be repaired or replaced at Superwinch’s discretion without charge to buyer upon buyer’s compliance with disclosed procedures. View larger. Everything you need right out of the box. With this in mind the bi-directional action of the Superwinch UTV4000 features mechanical load holding to minimize the possibility of cable slippage in the event of power failure or surge, as well as dynamic braking of the winch drum to provide the variety of stopping power needed for each job. Limited Lifetime Warranty Superwinch, Inc. This combined with the unit's solenoid, which disconnects your winch's electrical system from the battery when your vehicle is turned off, as well as circuit breaker protection ensures that users will always have all the power that they need without taking a toll on their ATV's battery. Featuring a variety of mounting configurations, multiple switching options--including an additional wired handheld switch--mechanical load holding and dynamic braking and more, whether you need a moderate-heavy duty winch for an ATV, trailer or for general use look no further.
