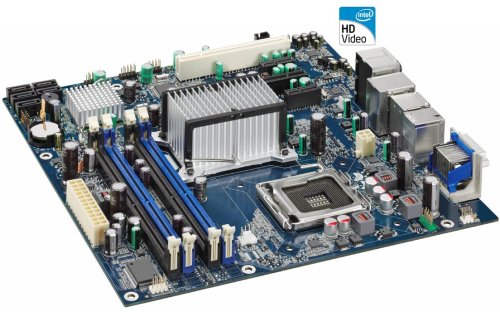

Intel DG45ID Media Series G45 micro-ATX Intel Graphics HDMI+DVI 1333MHz LGA775 Desktop Motherboard

Detail Specifications Form factor - microATX (9.60 inches by 9.60 inches 243.44 millimeters by 243.84 millimeters) Processor - Support for an Intel Core2 Quad processor in an LGA775 socket - Support for an Intel Core2 Duo processor in an LGA775 socket - Support for an Intel Pentium Dual-Core processor in an LGA775 socket - Support for an Intel Celeron Dual-Core processor in an LGA775 socket - Support for an Intel Celeron processor 400 sequence in an LGA775 socket Memory - Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets - Support for DDR2 800/667/533 MHz DIMMs - Support for up to 8 GB of system memory Chipset - Intel G45 Express Chipset Audio - 8-channel (7.1) audio subsystem with five analog audio outputs and one optical S/PDIF digital audio output using the IDT 92HD73E audio codec Video - Intel Graphics Media Accelerator X4500HD onboard graphics subsystem with integrated HDMI + DVI-I display ports LAN support - Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82567LF Gigabit Ethernet Controller This board is designed to bring you the next level of quality home entertainment experience with integrated HDMI display output and hardware accelerated decode during high-definition playback. Marketing Description Introducing the Intel Desktop Board DG45ID built in micro-ATX form factor. With support of Intel Core2 Quad processors and up to 1333 MHz FSB, this desktop board truly brings joy to your living room.Intel Desktop Board DG45ID supports Dolby Home Theatre and is Microsoft Windows Vista Premium WHQL certified.

Graphics Intel® Desktop Media Series Boards offer users an excellent visual experience thanks to the Intel® Graphics Media Accelerator X4500HD with Intel® Clear Video Technology. Intel Media Series Desktop Boards allow users to experience HD videos in surround sound, design school projects or presentations, or upload vacation videos right out of the box, and with superior speed and efficiency. Included Dolby Control Center software allows you to tweak and adjust your audio experience to meet your exacting requirements. Advanced Technical Specifications

• Supported CPU
  • CPU Socket Type: LGA775
  • CPU Type: Intel® Core™2 Quad / Intel® Core™2 Duo / Intel® Pentium® Dual-Core / Intel® Celeron® Dual-Core / Intel® Celeron®
  • North Bridge: Intel® G45 Chipset
• Memory
  • Memory Slots: 2x240-pin
  • Memory Standard: DDR2 677/800 MHz
  • Maximum Supported Memory: 8 GB
• Expansion Slots
  • PCI Express 1.0 x16 connections: 1
  • PCI Express x1 connections: 2
  • PCI bus connectors: 1
• Storage Devices
  • SATA 3Gb/s: 5
  • eSTAT: 1
• Onboard Graphics
  • Intel® Graphics Media Accelerator X4500HD with Intel® Clear Video Technology
  • Integrated HDMI & DVI ports
• Onboard Audio
  • Audio Chipset: Intel® High Definition Audio
  • Audio Channels: 8-channel (7.1) Dolby Home Theater
  • S/PDIF Out: 2 digital audio outputs
  • Audio Ports: 5 analog audio outputs
• Onboard LAN
  • Max LAN Speed: 10/100/1000 Mbits/sec
• Onboard USB
  • Onboard USB: 12 USB 2.0 ports (6 external ports, 6 via 2 internal headers)
• Physical Spec
  • Form Factor: microATX
  • Dimensions: 6.75 inches x 6.75 inches (171.45 mm x 171.45 mm)

Whatever you do, enjoy every decibel coming at you in all directions. Onboard Audio Utilizing the Intel® High Definition audio chipset, the Intel® Media series delivers rich, realistic 360° Dolby Home Theater audio with up to 8-channel, 7.1 surround sound. This feature enables incredible visual media capabilities including video and image editing, streaming video viewing, and HD home theater entertainment. Big, unwieldy media files can quickly overcome mainstream desktop PCs. This built-in support for full 1080p high-definition visuals eliminates the need for an additional graphics card while offering support for today's most popular video outputs including HDMI and DVI. Amazon.com Product Description With the growing popularity of user-generated media, peer-to-peer sharing and the uploading and viewing of streaming video, photos and more, it's no secret that the creation and sharing of digital entertainment is on the rise. Quad-Core Compatibility With support for Intel's latest quad-core processors, Intel® Desktop Media Series Boards deliver highly efficient performance for the most demanding entertainment applications. Intel® Media Series Desktop Boards Product Highlight Incredibly versatile, Intel® Media Series Desktop Boards are designed to support high-bandwidth interfaces and are ideal for running demanding entertainment, education, and gaming applications. From tech-savvy hobbyists to professional designers, today's users need hardware that can run the advanced multimedia tools needed to create and enjoy audio, video and more.

Amazon.com Product Description With the growing popularity of user-generated media, peer-to-peer sharing and the uploading and viewing of streaming video, photos and more, it's no secret that the creation and sharing of digital entertainment is on the rise. Immerse yourself in sound as you enjoy the latest film in high definition or simply relax with some favorite tunes. With multiple computing "brains", new multi-core processing systems can run resource intensive games and multimedia applications with phenomenal ease and superior responsiveness. From tech-savvy hobbyists to professional designers, today's users need hardware that can run the advanced multimedia tools needed to create and enjoy audio, video and more. Ever flexible, Intel® Desktop Media Series Boards also offer a PCI Express x16 graphics connector to support the latest high-end graphics cards for a great 3D gaming experience.
