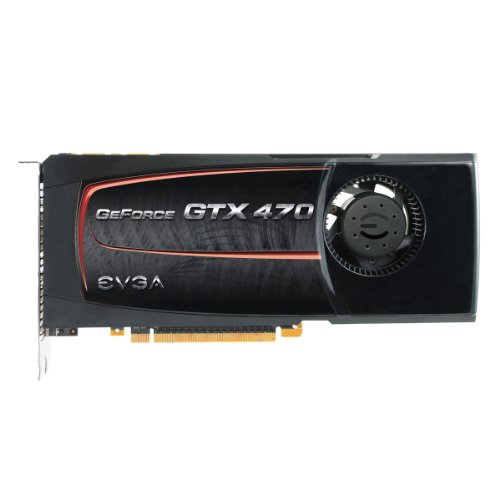

EVGA GeForce GTX470 1280 MB DDR5 PCI-Express 2.0 Graphics Card 012-P3-1470-AR
Product Description
The EVGA GTX 470 contains double the CUDA cores of previous generation GPU's, a high speed GDDR5 memory interface with 1280 MB onboard and full DirectX 11 support providing unrivalled performance and breathtaking image quality. Compatible in 2-way and 3-way SLI configurations, the GTX470 provides brilliant and immersive experiences in games and unsurpassed computational power. Specifications include the GTX 470 (607 MHz core clock) chipset, 1280 MB of 2.5ns GDDR5 memory with a 3348 MHz memory clock and 133.9 GB/second memory bandwidth, 320 bit memory interface, 1215 MHz Shader Clock, 448 CUDA cores, and PCI Express 2.0 compatibility. Additional features include Microsoft DirectX 11 support, NVIDIA PhysX and NVIDIA PureVideo HD technologies, NVIDIA 2-way and 3-way SLI readiness, NVIDIA 3D Vision Surround readiness, NVIDIA CUDA technology with CUDA C/C++, DirectCompute 5.0, and OpenCL support, PCI-Express 2.0 support, OpenGL 3.2 support, Dual Link HDCP capability, and Microsoft Windows XP/Vista/7 support. The EVGA GTX 470 ushers in the next generation of NVIDIA GeForce graphics processing units. Connections are 1 Mini-HDMI 1.4 connector and 2 Dual-Link DVI connectors. Package includes the EVGA Driver/software disc with EVGA Precision Tuning utility, 1 Mini-HDMI to HDMI cable, 1 DVI to VGA adaptor, 2 6-pin PCI-E power cable, and a lifetime warranty if registered within 30 days at . Experience heart-pounding cinematic visuals thanks to the combined power of DirectX 11, NVIDIA PhysX, and NVIDIA 3D Vision Surround Technologies.
Compatible in 2-way and 3-way SLI configurations, the EVGA GTX 470 provides brilliant and immersive experiences in games and unsurpassed computational power. Get a glimpse into the future of gaming with ray tracing.
* NVIDIA 3D Vision Surround requires NVIDIA release 256 driver, two or more graphics cards in NVIDIA SLI configuration, 3D Vision glasses and three matching 3D Vision-Ready displays. Visit www.nvidia.com for more details.

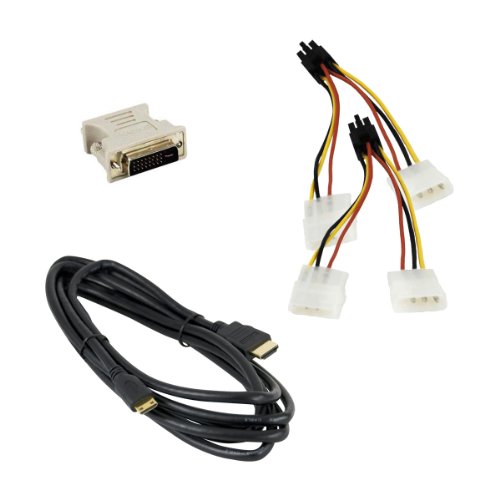

What's in the Box EVGA Driver/Software Disc with EVGA Precision Tuning Utility; Mini-HDMI to HDMI Cable; DVI to VGA Adapter; two 6-pin PCI-E power cables; User Guide
Warranty All EVGA products come automatically with a one year, parts and labor, limited warranty. NVIDIA GeForce GPUs with CUDA technology enable hyper-realistic GPU accelerated PhysX gaming effects such as explosions that cause dust and debris, amazing natural water and fluid effects, characters with life-like motion or cloth that drapes and tears naturally. EVGA is available for you day or night to help answer any questions with its 24/7 technical support. NVIDIA SLI technology enables up to three EVGA GeForce-series (3-way SLI support varies by model) graphics cards in one system for up to 280-percent performance gains. Features include a built-in stress tester, benchmarking to quickly test your performance, and a GPU protection feature that automatically shuts off at a set temperature. NVIDIA Surround also supports triple screen gaming with non-stereo displays.
The EVGA GTX 470 contains double the CUDA cores of previous generation GPUs, a high speed GDDR5 memory interface with 1280 MB onboard and full DirectX 11 support providing for unrivalled performance and breathtaking image quality. SLI requires sufficient system cooling and a compatible power supply. EVGA OC Scanner combined with Precision make the perfect combo with built-in artifact scanning, benchmarking, and more. Follow EVGA on your favorite social networking sites like Facebook, Twitter, Steam, and the EVGA Gaming Community. Key Specifications
- Core Clock: 607 MHz
- Memory Clock: 3348 MHz Effective
- Shader Clock: 1215 MHz
- CUDA Cores: 448
- Bus Type: PCI-E 2.0
- Memory Detail: 1280 MB GDDR5
- Memory Bit Width: 320 Bit
- Memory Speed: 2.5 ns
- Memory Bandwidth: 133.9 GB/sec
Software Compatibility
- NVIDIA ForceWare Drivers
- Microsoft DirectX 11
- OpenGL 3.2
- Microsoft Windows XP/Vista/7

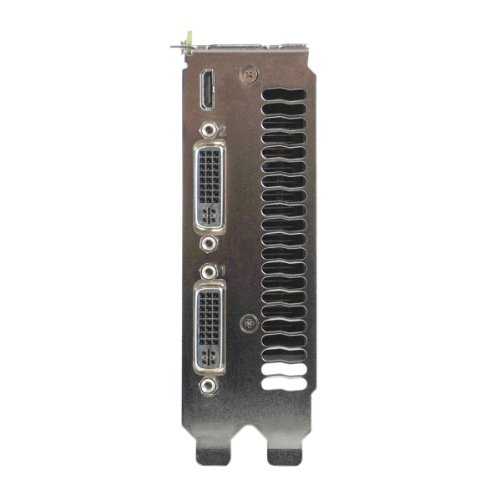

Connectors
- Two dual-link DVI (up to 2560 x 1600)
- Mini-HDMI 1.3a w/audio (8-channel LPCM)
- HDCP ready
Key Features
- Microsoft DirectX 11 Support: DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the new API's key graphics feature, GPU-accelerated tessellation.
- NVIDIA 3D Vision Surround Ready*: Expand your games across three displays in full stereoscopic 3D for the ultimate "inside the game" experience with the power of NVIDIA 3D Vision and SLI technologies. The EVGA GTX 470 ushers in the next generation of NVIDIA GeForce GPUs! *** Supported video software is required to experience certain features. EVGA's Step Up program protects your investment with an exclusive upgrade option within 90 days of purchase (not all customers will be eligible for this program). Join in at www.evga.com/sonet/. Visit www.slizone.com for more information and a listing of SLI-Certified components. NVIDIA Technologies NVIDIA GeForce series graphics processors are the epitome of graphics performance, and deliver phenomenal frame rates with stunning visuals in the latest 3D games and applications. See www.nvidia.com/surround for more information. NVIDIA PureVideo HD technology empowers EVGA GeForce-series graphics cards with HD playback capabilities for vivid visuals and hardware decoding of Blu-ray disk formats. With EVGA Precision, monitor and control fan speeds, core clocks, temperatures, frame rates, take screenshots and more.
Images
Features
GeForce GTX 470 with 607 MHz core clock; Windows XP, Vista and Windows7 support; 1280 MB 320-bit 2.5ns GDDR5 memory; PCI Express 2.0; 3348 MHz memory clock and 1215 MHz shader clock
